- Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit.
- Minimal air inclusion during connection / disconnection.
- Compact slim design.
- Minimal fluid loss during disconnection, reducing fluid loss to the environment.
- Optimal resistance to the corrosion for long life of couplings.
- Safe and simple to use.

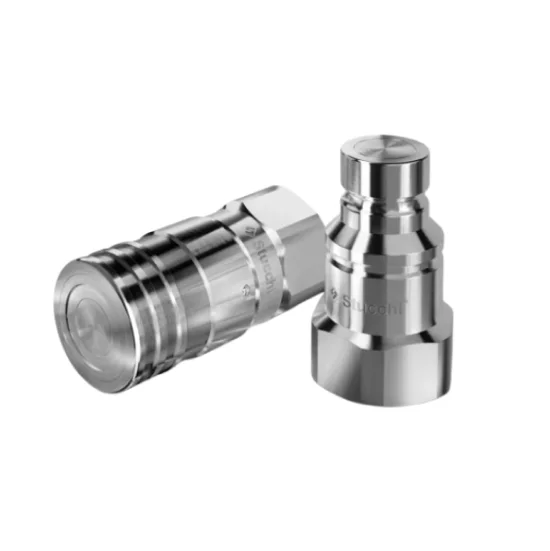

FL
The “FL” series, crafted from AISI 316 stainless steel with Viton seals, is designed for high-corrosion environments and corrosive fluid transfer. Its flat-face design prevents leakage, reduces contamination, and ensures excellent corrosion resistance, making it ideal for offshore, marine, industrial, chemical, pharmaceutical, and food processing applications.
Specifications
- Interchange – ISO 16028
- Locking mechanism – Locking ball, Safety lock
- Sealing – FKM (Viton®)
- Operating pressure – up to 350 bar
- Valving style – Flat Face
- Connection Under Pressure – Not allowed
- Available threads – BSP, NPT
- Flow rate – up to 1000 l/min
- Connection system – Push
- Material/Treatment – Stainless steel (AISI 316L)
- Available sizes – 1/8″, 1/4″, 3/8”, 1/2″, 5/8″, 3/4″, 1″, 1-1/2″, 2″
- Temperature – -15°C / +180°C
