- Connection under residual pressure is supported on one side, with a maximum of 15 MPa (5 MPa for VOF200).
- An inspection hole allows verification of complete coupling connection.
- Wrench flats on the bodies facilitate easy fitting assembly.
- The poppet valve with an elastomer seal ensures maximum sealing when the couplings are disconnected.
- High-resistance carbon steel retainers provide enhanced durability and reliability.
- Internal parts are designed to minimize turbulence and reduce pressure drop, improving performance.
- High resistance to impulse pressures, tested for up to 500,000 connections.
- The compact design allows for easy installation and efficient use of space.
- Designed for simplicity, the system is user-friendly and easy to operate.
- Designed for simplicity, the system is user-friendly and easy to operate.

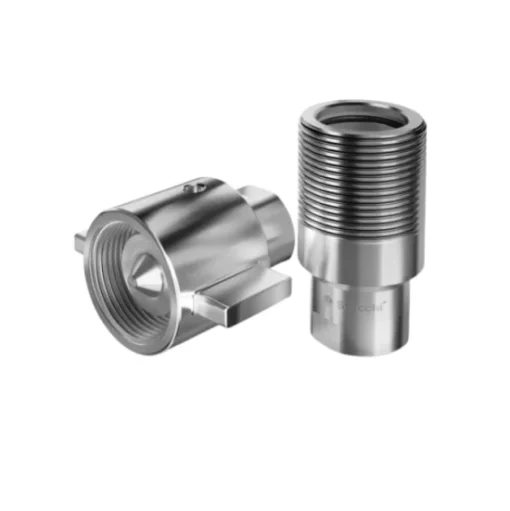

VOF
The “VOF” series screw couplings, made of carbon steel, are ideal for Oil & Gas applications. Certified fire-safe per API 16D and EUB Directive #36, they are suited for Drilling Blow-Out-Prevention (BOP) circuits.
Specifications
- Interchange – With similar couplings
- Locking mechanism – Screw to connect
- Sealing – Nitrile NBR
- Operating pressure – up to 345 bar
- Valving style – Poppet
- Connection Under Pressure – One side only, Allowed
- Available threads – BSP, NPT
- Flow rate – up to 1100 l/min
- Connection system – Screw
- Material/Treatment – Carbon steel, Cr3
- Available sizes – 3/4″, 1″, 1-1/2″, 1-1/4″, 2″
- Temperature – -20°C / +100°C
