- Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit.
- Minimal air inclusion during connection / disconnection.
- Good resistance at impulse pressures.
- Safe and simple to use.
- Minimal fluid loss during disconnection, reducing fluid loss to the environment.
- Superior corrosion resistance compared to zinc plating in specific corrosive environments.
- Compact slim design.

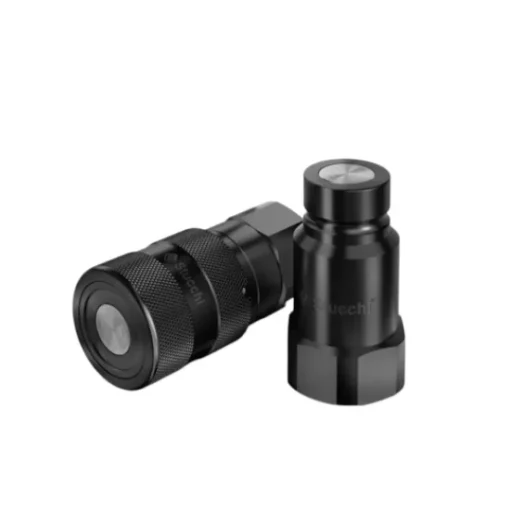

FIRG-Q
The “FIRG-Q” series, made from treated carbon steel with AISI 303 stainless steel valves, is designed for mildly corrosive environments and fluids like water or glycol. Its flat-face design prevents leakage, reduces contamination, and offers enhanced corrosion resistance, making it ideal for industrial applications.
Specifications
- Interchange – ISO 16028
- Locking mechanism – Locking ball, Safety lock
- Sealing – Nitrile NBR, Kalrez®, FKM (Viton®), EPDM
- Operating pressure – up to 300 bar
- Valving style – Flat Face
- Connection Under Pressure – Not allowed
- Available threads – BSP, NPT
- Flow rate – up to 1000 l/min
- Connection system – Push
- Material/Treatment – Stainless steel (AISI 316L)
- Available sizes – 1/4″, 3/8”, 1/2″, 5/8″, 3/4″, 1″, 1-1/2″, 2″
- Temperature – -40°C / +300°C (depending on the sealing)
